Path :  Laboratory Upright Freezers / ProfiLine Pegasus PLPE 6042
⇐ prev.: ProfiLine Pegasus ⇑ Overview: Laboratory Upright Freezers ProfiLine Pegasus: next ⇒

Laboratory Upright Freezer ProfiLine Pegasus PLPE 60..

  • Forced air circulation and automatic defrost
  • Microprocessor driven temperature controller with digital display
    and password protection
    - Visual/audible alarm device, mains-independent
    - Alarm warning for excess and sufficient temperature
    - Power failure alarm
    - Probe alarm
    - Door alarm
    - Integrated data logger with USB port
    - No-volt remote alarm contact for connection to a remote alarm system
      on the premises
    - RS-485 port
    - Prepared for GSM alarm
  • Lockable door, door hinges on right, can only be changed in factory
  • External housing made of white, galvanized steel plate
  • Interior made of stainless steel (CNS)
  • 3 adjustable grid inserts in tilt-rsistant guide rails
  • 4 castors, 2 lockable

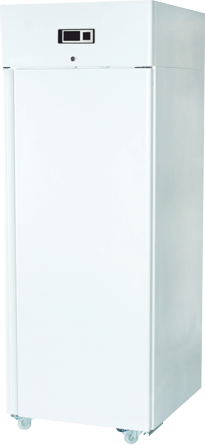

Fig.r.: ProfiLine Pegasus PLPE 6042 EWU
Model ProfiLine Pegasus   PLPE 6042
Temperature range °C : -10/-40
Content litres (net)to : 618
Ext. dimensions (W×D×H) mm : 740 × 870 × 2017
Int. dimensions (W×D×H) mm : 600 × 685 × 1505
Depth with door opened mm : 1490
Weight kg : 138
Mains connection  : 1/N/PE~230 V 50-60 Hz
Refrigerant   : R404A
Shipping dimensions (W×D×H) mm : 990 × 840 × 2200
Shipping weight kg : 167


ProfiLine Pegasus + Accessories Cat. No.
ProfiLine Pegasus PLPE 6042EWU GSPLPE6042EWU
ProfiLIne Pegasus PLPE 6042EEU GSPLPE6042EEU
ProfiTec temperature monitoring and recording system GPTEC4A
ProfiCaller telephone dialler on request
Circular chart recorder for 7 days on request
6" 7-day circular charts, Pck. of 100 pieces on request
Pt100 temperature sensor, add. installed for ext. temperature recording ZXX2-020-2L
Grid inserts, 530 × 650 mm (W×D) ZPLPE4-530x650
Guide rails for grid inserts (1 pair) on request
Drawer with telescopic slide-out, made of CNS on request
CO2 back-up system, free-standing ZXX2-092
Facilities for customer connection of CO2 back-up system ZPLPE2-094
MIN/MAX thermometer to be placed in refrigerators or freezers, ZXX2-019-001
measuring range -50/+50 °C, no additional temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display as well ZXX2-019-011
as Data-Hold and relative measuring function.
measuring range -200/+1370 °C.
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011, ZXX2-022-100
measuring range -100/+1000 °C, length 2 m, other ranges on request
 Temperature Monitoring
intelligent temperature monitoring and recording system
• For up to 4 refrigerators
   and/or freezers
• Readings are stored over
   a period up to 781 days
• Warning for excess and
   insufficient temperature
• Includes no-volt remote
   alarm contact
• The measuring protocol
   can be fed to PC via
   RS-232 port

Download Data sheet


 Inventory Systems
Stainless steel drawers,
freezer cassettes and grid
inserts enable specimens to be stored and retrieved in a clear and orderly manner.
Optimum use is made of
the storage capacity.
